IF-Profiler

3D profiler to measure roughness and surface finish

IF-Profiler is a handheld 3D roughness measurement system for high resolution measurement of surface finish. Users measure roughness of flat and curved components with only one system. Measurements are performed both profile based (ISO 4287) and areal based (ISO 25178). The lightweight IF-Profiler consists of a 3D measurement sensor and a robust, at the same time handy framework. The ergonomic design combines ease of use and required mechanical rigidity. Traceable and repeatable measurements are achieved in a min. measurement time of three seconds.

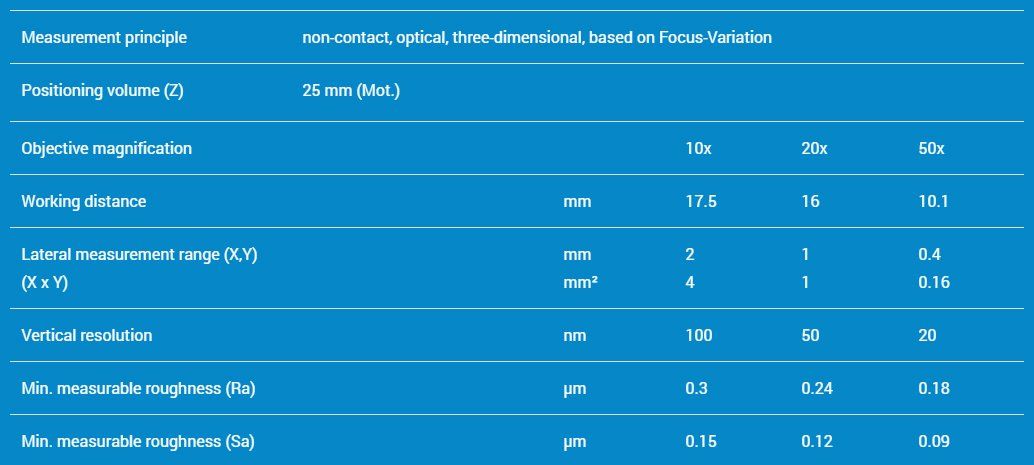

Technical specifications
