Powerful New Apps

Powerful New Features and Benefits

SpotFocus™

Quickly focus on the area of interest by simply using the mouse pointer.

Increase speed, improve accuracy and reduce human error with the capabilities of SpotFocus™.*

 *Patent Applied for.

Manual Rocker Focus

Use Manual Rocker Focus to accurately adjust the focus level to your region of interest.

Save time by quickly adjusting the focus level using the rocker icon to inspect specific regions on an object when in manual focus mode.

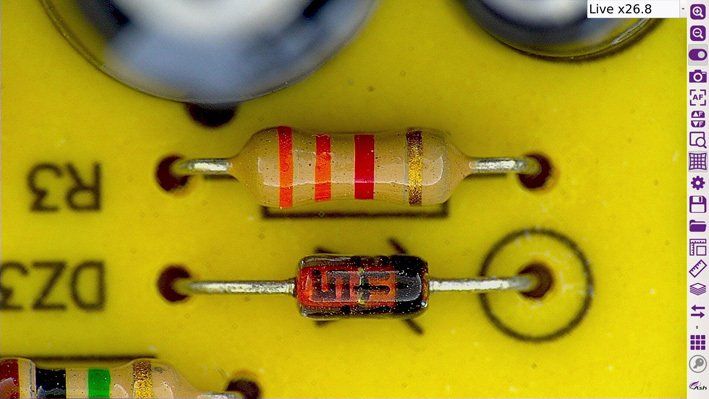

Superb Image Quality

Experience unrivalled Full HD video imaging never seen before in an ASH system.

AshCam+™ enables vibrant image quality ensuring true representation of your sample. Omni 3 offers an enhanced, crystal clear image for even the most demanding inspection applications.

AshTruColour™ – True Colour Reproduction

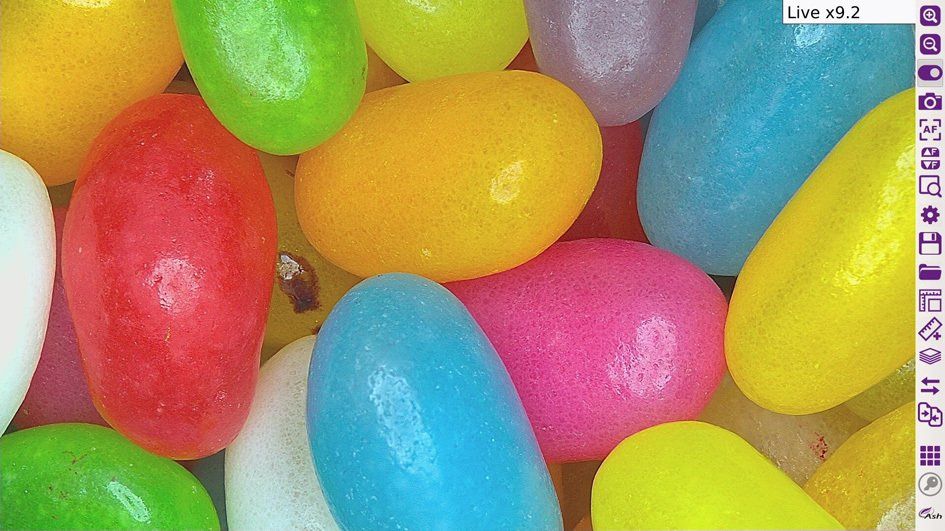

View true colour reproduction of your sample with Omni 3.

AshCam+™ brings next generation colour reproduction to Omni 3.

Replicate real and accurate colours as seen with the naked eye for true colour representation. *

 *Patent Applied for.

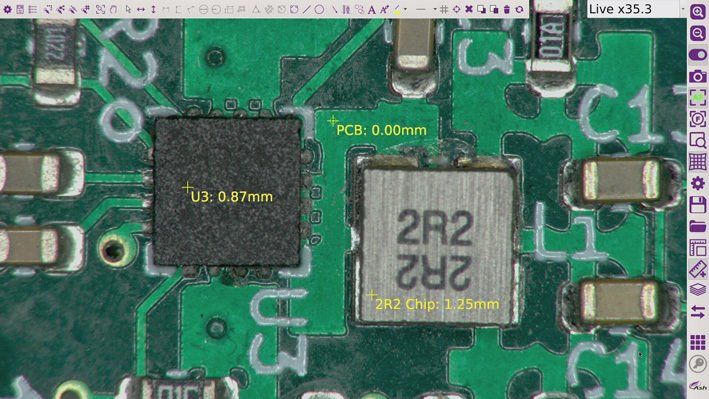

2D Measurement, Annotation & Graticules

Intuitive on screen full 2D patented measurement application. Simply draw measurements, shapes and add annotations onto a live or static image and save direct to internal memory or external storage options. Features include: point to point, diameter, angle, adjustable X-Y grid, shapes and annotation to accommodate a multitude of samples specifications.

Graticule creation allows samples to be analysed against on-screen digital templates with set tolerance limits. It also enables quick go/no-go defect analysis. This improves efficiency in high-volume sample through-put inspection.

DXF Import

Import a range of DXF files to create graticules for overlay comparison with parts. Imported DXF files can be edited and annotated on the Omni system.

This dramatically reduces time taken to create graticules and increases workflow efficiency.

Comparator Side By Side

Visually compare your live sample image to a stored master image in the form of a split screen. Add notes through annotation and save the comparison image for documentation and traceability. Enables rapid identification of differences between gold sample and test samples.

Image Stitching

Stitch multiple images together, increasing your field of view at high magnification. Document and annotate for traceability.

Image Stacking

View a sample with different layers all in focus at the same time. Omni automatically captures several images from 2 to 12 at different focal depths and creates an image based on the sharpest regions from each of these separate captures.

Comparator Overlay

This app allows the user to create an image overlay of a master image to identify defects by overlaying and flashing the live sample image against the stored master image.

Enables rapid identification of differences between gold sample and test samples.

Improved accuracy and usability in addition to improved workflow speed.

The Omni 3 Maintains The Following Improved Great Features Introduced With The Hugely Successful Omni Core.

Intuitive Interface

Intuitive mouse and keyboard GUI for simple and familiar user experience.

Email

Save time by emailing directly from Omni. Document directly to server or cloud network for traceability.

OONMI 3 Smarter Inspection Flexibility & Confidence In Measurement

Customize Worfklow

Create custom workflows to standardize and control inspection processes.

Email

Save time by emailing directly from Omni. Document directly to server or cloud network for traceability.

Connected

Save time by documenting directly to server or cloud network for traceability.

Calibrated For Industry

Calibrated to ISO 17025 standard. No need to calibrate. Maintains calibration while zooming providing trust in our measurement capability.

Repeatable Measurement

Automatic edge detection for repeatable and reproducible patented measurements that reduce variability between users.

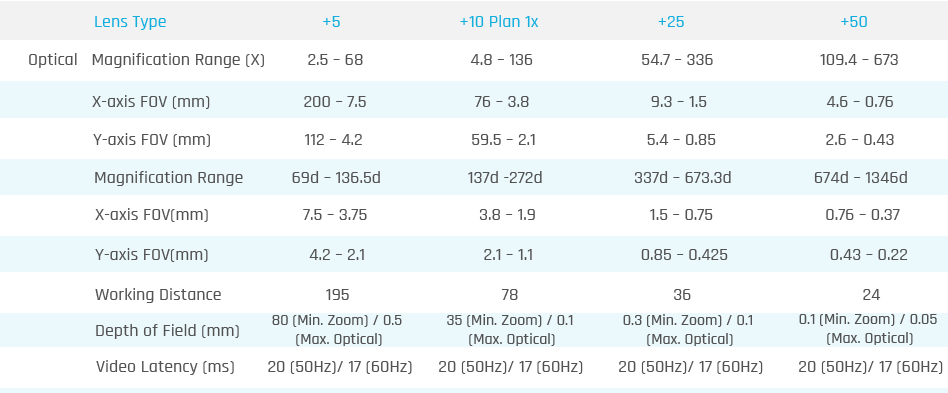

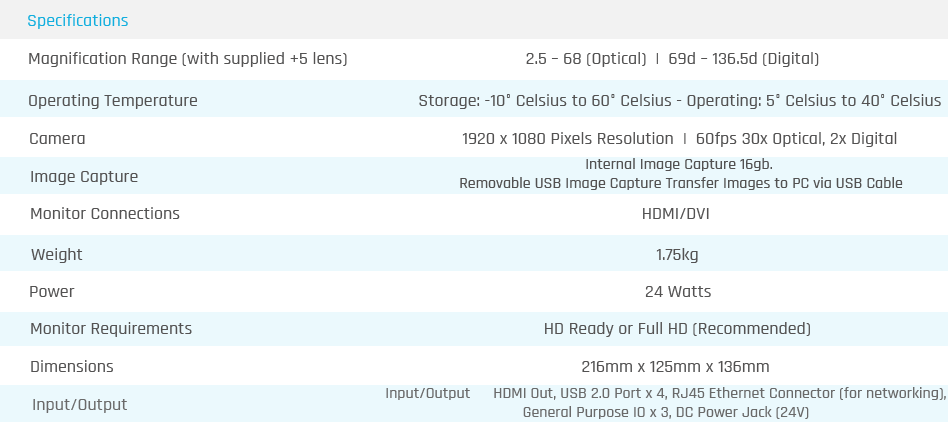

OMNI3 Technical Specifications
