The next generation desktop SEM


A true analytical benchtop scanning electron microscope.


NANOS offers SEM imaging at a low cost of ownership for high-resolution imaging and integrated Energy Dispersive Spectroscopy (EDS) for rapid elemental analysis. It is designed for easy installation, ease of use and easy maintenance.




Magnificent resolution

SEM accessible to everyone, everywhere.

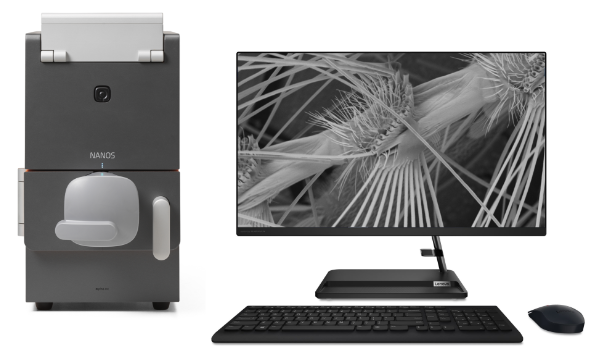

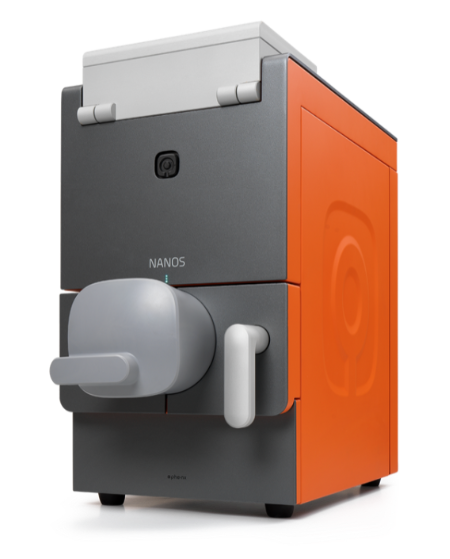

The NANOS is a complete and affordable benchtop scanning electron microscope (SEM). It is designed using the latest technology, delivering fast, high-quality SEM images and elemental analysis. Its design is robust and modern, which makes it perfect for research and development, educational and industrial use.

Setting

The NANOS is delivered with integrated BSD, SED, EDS and an eucentric tilt stage.


Design

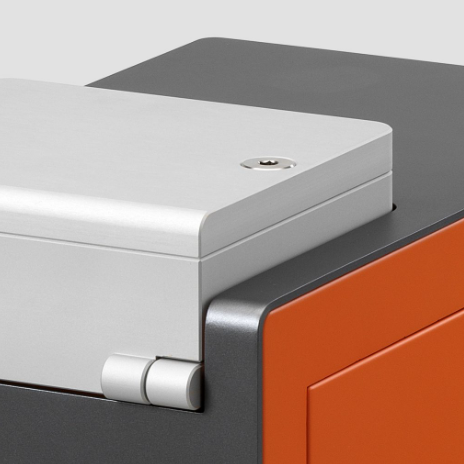

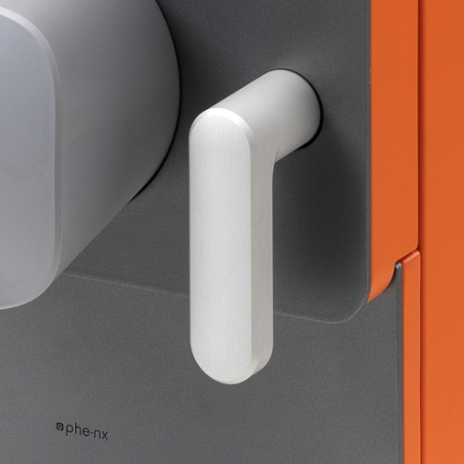

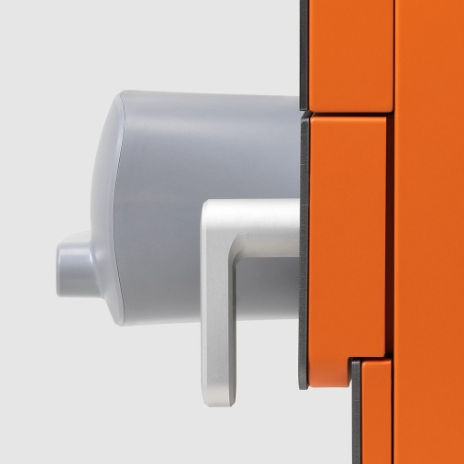

The NANOS has a modern and robust design and is designed with the latest materials and components.


Service

The NANOS design allows for easy access for maintenance and upgrades that can be completed at your facility.

Robust

With excellent stability and a small footprint, the architecture of the NANOS ensures that it can be used in non-laboratory environments.


Easy to use

In BASIC mode, NANOS will produce results in a short period of time, regardless of experience. ADVANCED mode provides additional features for detailed analysis.

Cost of ownership

The NANOS has been designed to keep the cost of ownership lower than any currently available benchtop SEM.

Iconic dutch design

Designed and manufactured in the Netherlands, it's all about reliability, quality and ease of use.



GENERAL SPECIFICATIONS

SOFTWARE optical Magnification range: 2 – 12x
WHICH Magnification range: 50 - 200,000x
Resolution <10 nm
LIGHTNING optical clear field
WHICH Optimized thermoionic source (tungsten)
Acceleration stresses Default: 1, 2, 5, 7, 10, 15, and 20 kV
Adjustable range between 1 and 20 kV
DETECTOR Secondary Electron Detector (SED)
Energy Dispersive Spectroscopy (EDS) Detector: Integrated
DIGITAL IMAGE DETECTION optical color navigation camera
IMAGE FORMATS JPEG, TIFF, PNG, BMP
USER INTERFACE Communication, imaging and analysis use a single monitor with control via a wireless mouse and keyboard. Remote control (for example, iPad) enabled Basic and advanced modes
DATA STORAGE Network, USB, workstation
SAMPLE STAGE Eucentric tilt stage (-15 to 40 ̊)
Computer controlled motorized X, Y: 25 x 25 mm
SAMPLE SIZE 25mm diameter pin trunnion
Round disk of 60 mm in diameter.
EDS SPECIFICATIONS detector type Silicon Drift Detector (SDD), thermoelectrically cooled
detector active area 30mm2 _
energy resolution @ Mn Kα < 133 eV
Max input count rate 300.000 cps
hardware integration fully integrated
SOFTWARE Integrated into the NANOS user interface
EDS analysis and mapping.
export functions
SYSTEM SPECIFICATIONS imaging module 280 (width) x 630 (depth) x 550 (height) All-in-One PC preconfigured with 27” monitor. SEM imaging and EDS analysis software installed
Weight 60 kilograms
Zapatillas Turbomolecular pump with oil-free diaphragm pre-vacuum pump
vacuum modes High vacuum SEM (conventional SEM) and 0.4 mbar low vacuum (low vacuum SEM)

Experience the NANOS


Eucentric stage

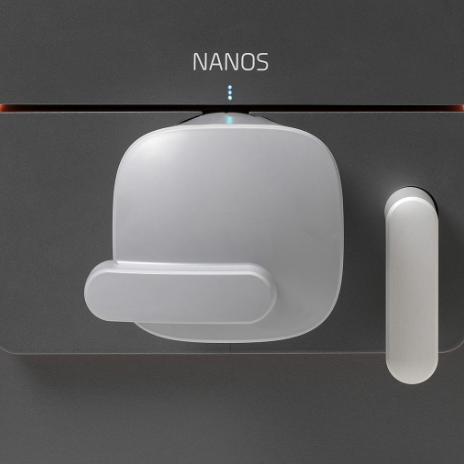

The NANOS Eucentric Stage is truly the only one of its kind. It comes standard with the NANOS. Motorized XY movements can be controlled through the user interface. Tilt of the sample while in SEM mode can be done by manually rotating the stage. Thanks to the eucentric design, the sample remains in focus without the need for intermediate changes to the SEM setup. The user interface indicates the exact tilt angle. Specimens can be tilted up to 55 ̊ angles.


Elemental analysis

The NANOS is equipped with a fully integrated energy dispersive X-ray (EDX) silicon drift detector (SDD). Through the user interface, the operator can select EDX Point Analysis or activate Elemental Mapping.


Electron detectors

The NANOS comes with a Secondary Electron Detector (SED) and a Backscattered Electron Detector (BSD) as standard. The BSD is a 4-quadrant detector with fully controllable independent segments. By using the segments in different combinations, it provides compositional or topographical details of the specimen, as well as images with a "shadow effect" by highlighting the surface from multiple directions.
