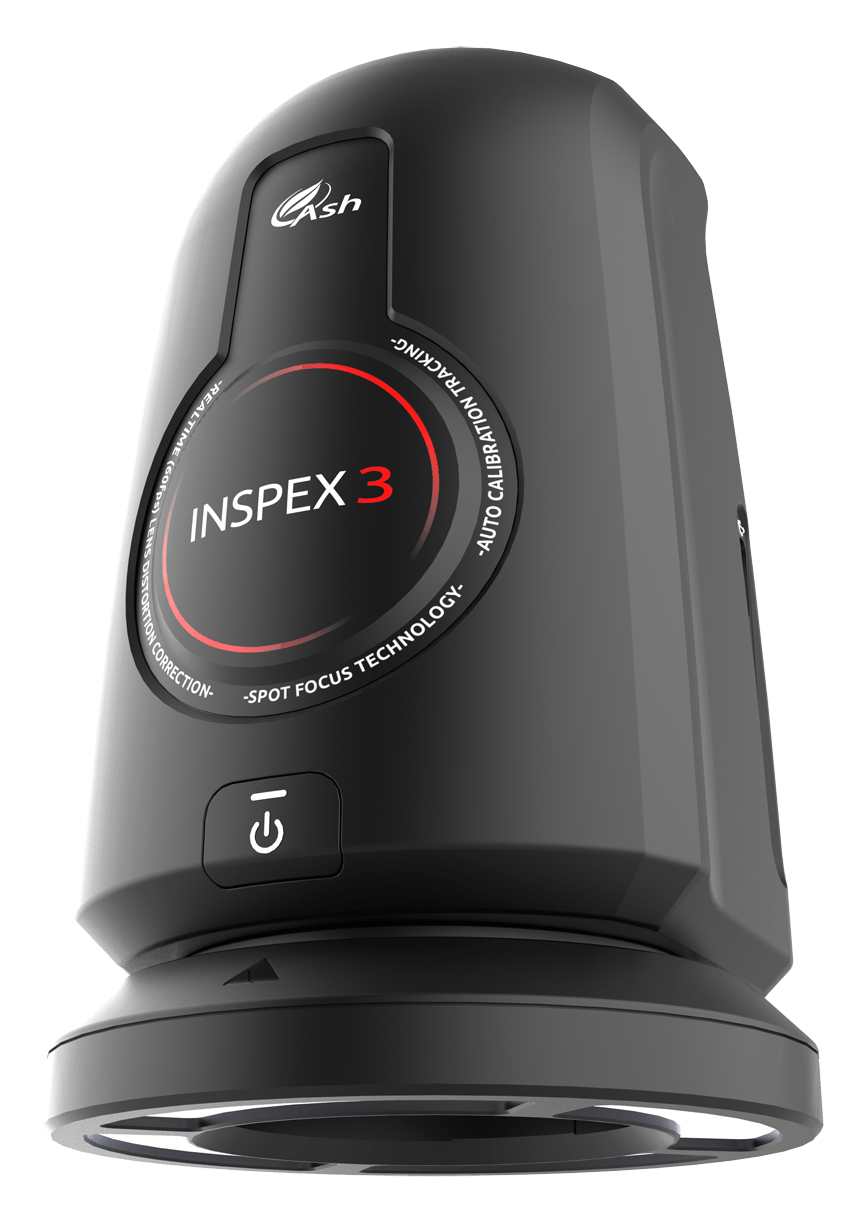

Inspex 3

Simply Smarter

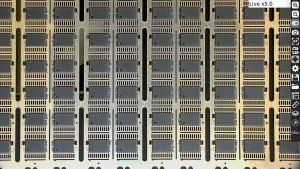

Superb Image Quality

Experience unrivalled Full HD video imaging never seen before in an Ash system. The Inspex 3 offers an enhanced, vibrant, crystal clear image for even the most demanding inspection applications.

Super Fast Auto-Focus

Place any part under the camera and it will immediately adjust the focus position allowing you to quickly and seamlessly inspect your part without having to adjust manual focus or change the height of the part.

Manual Rocker Focus

Save time by quickly adjusting the focus using the rocker icon to inspect the area of interest on a sample part when in manual focus mode.

SpotFocus™

Quickly focus on the area of interest by simply using the mouse pointer.

Improve accuracy and reduce human error with the capabilities of Spot Focus*

* Global Patent Applied For By ASH

AshTruColour™ – True Colour Reproduction

View true colour reproduction of your sample with the Inspex 3. Replicate real and accurate colours as seen with the naked eye for true colour representation.

Advanced Camera Settings

The new Advanced Camera Settings gives the user more power to enhance the image for a wide range of inspection and measurement capabilities.

Tailor sharpness, contrast, saturation and camera shutter speed to suit your particular application.

RTLDC™

Real-Time Lens Distortion Correction*.
Lens distortion is inherent in all microscopes. Image distortion at the outer edges of large samples is automatically corrected by the Inspex 3.

* Global Patent Applied For By ASH.

No Video Latency

The video from the Inspex 3 has zero delay. It’s 3x times faster than our previous systems. View parts in real time with no video lag, allowing you to comfortably inspect, rework, modify and assemble any part.

There is no delay between movement under the camera and what you see on the screen.

The Inspex 3 maintains the following improved great features introduced with the hugely successful Inspex II.

AshCal™

Inspex 3 is factory calibrated before shipping. No time is wasted performing recalibrations between changing magnifications, greatly improving your overall inspection time.

Image Stacking

Inspex 3 automatically captures several images at different focal depths to create a fully focused, sharp, clear image for easy inspection.

Save time by removing the need to adjust the camera height or manual focus.

2D Measurement And Annotation

Point to point measurement and annotation of samples and creation of graticules.

User Privileges

User privilege settings enables operational control and traceability.

Assign multiple users with access to different settings and features, improving security and streamlining the inspection process.
