The new μCMM
Measure components with extremely tight tolerances in high accuracy
μCMM is the most accurate purely optical micro-coordinate measuring system in its class. Users combine advantages from tactile coordinate measuring technology and optical surface measuring technology and measure the dimension, position, shape and roughness of components with only one sensor. The optical CMM offers high geometric accuracy of several optical 3D measurements in relation to each other, enabling the measurement of small surface details on large components and precisely determining the position of these individual measurements in relation to each other. The spectrum of measurable surfaces includes all common industrial materials and composites such as plastics, PCD, CFRP, ceramics, chrome, silicon. Materials from matte to polished, reflective components can be measured. Simple operation is implemented by single-button solutions, automation and ergonomic control elements such as a specially designed controller. Air-bearing axes with linear drive enable wear-free use and highly accurate, fast measurements. This makes μCMM ideal for permanent use in production, too.
EUni:Tr:ODS,MPE = (0.8 + L/600) μm ⎯ EUniZ:St:ODS,MPE = (0.15 + L/50) µm

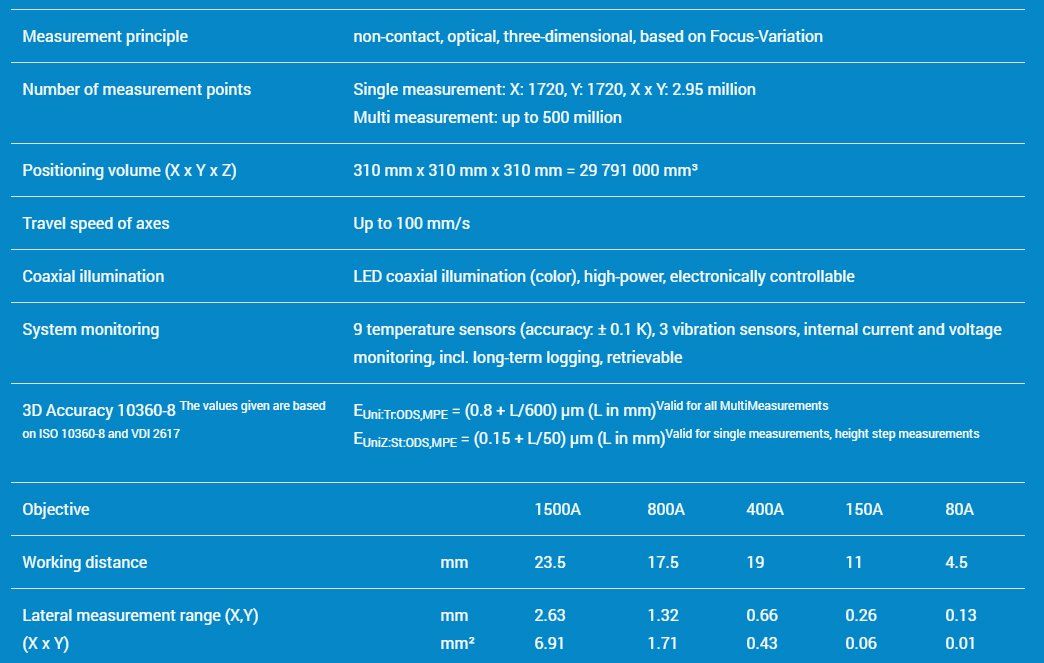

Technical specifications
